Opis
Engine & Drivetrain:
Active Descent Control:Not Equipped
Cooling:Liquid
Cylinders Displacement:2 / 850cc
Drive System Type:True On-Demand AWD/2WD
Engine Braking System (EBS):Standard
Engine Type:ProStar SOHC 4-Stroke Twin Cylinder
Fuel System/Battery:Electronic Fuel Injection
Horsepower:78 HP
Transmission/Final Drive:Automatic PVT P/R/N/L/H; Shaft Drive
Dimensions:
Bed Box Dimensions (L x W x H)
N/A
Estimated Dry Weight
735 lb (333 kg)
Front/Rear Rack
25 lb / 50 lb (11.3 kg / 22.7 kg)
Fuel Capacity
5.25 gal (19.9 L)
Ground Clearance
11.5 in (29 cm)
Overall Vehicle Size (L x W x H)
82.3 x 48.6 x 48.4 in (209 x 123 x 123 cm)
Payload Capacity
290 lb (131 kg)

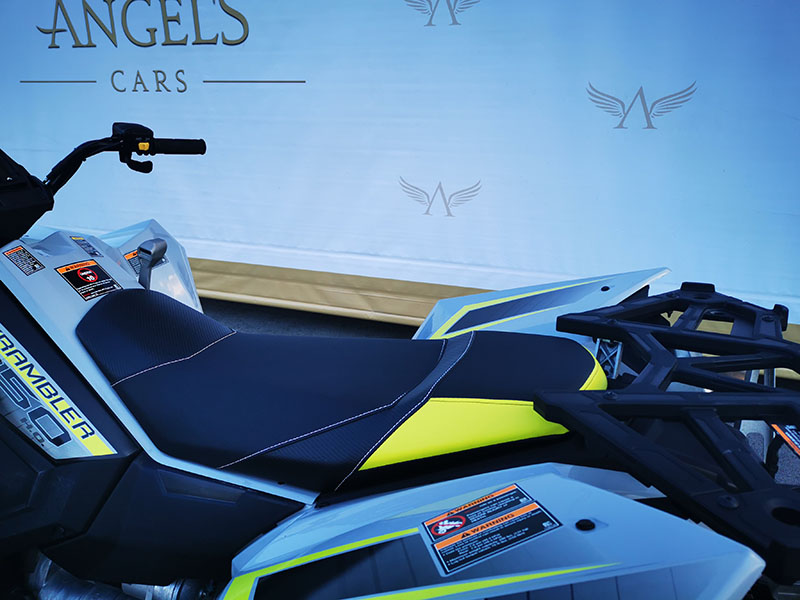

Seat Height
35 in (89 cm)
Wheelbase
53 in (134.6 cm)
Brakes:
Front/Rear Brakes
Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking Brake
Park In-Transmission / Lockable Hand Lever
Additional Specifications
Cargo System
Lock & Ride, 1 Gal (4 L) Rear Storage

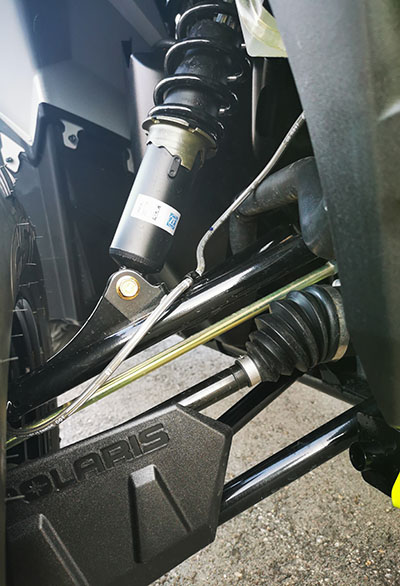

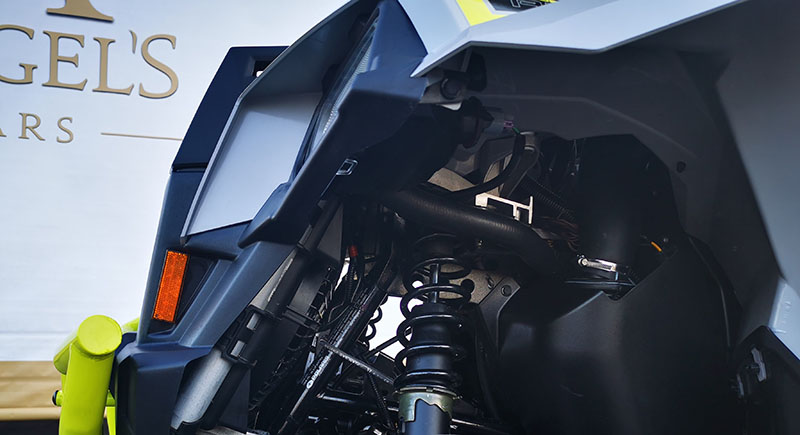

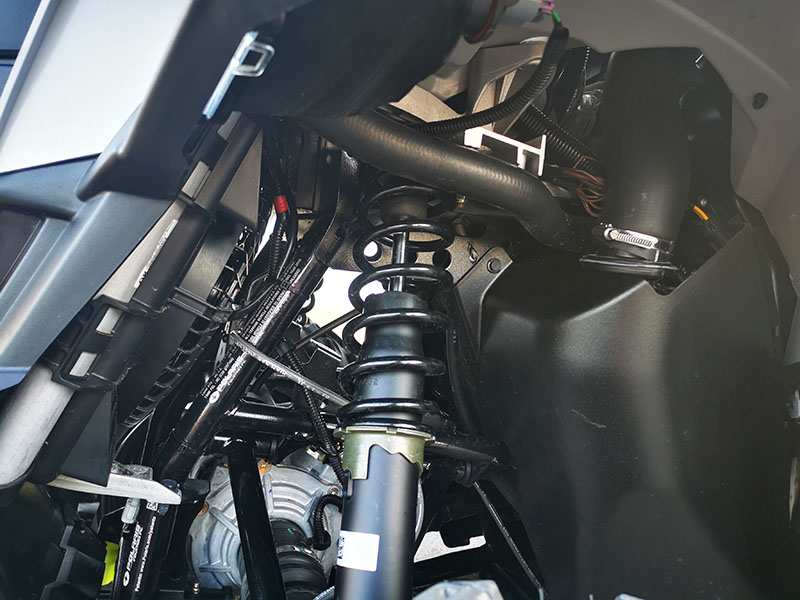

Front Suspension
Dual A-Arm 9 in (22.9 cm) Travel
Hitch Towing Rating
1,500 lb (680.4 kg)
Hitch Type
Standard/1.25″ Receiver

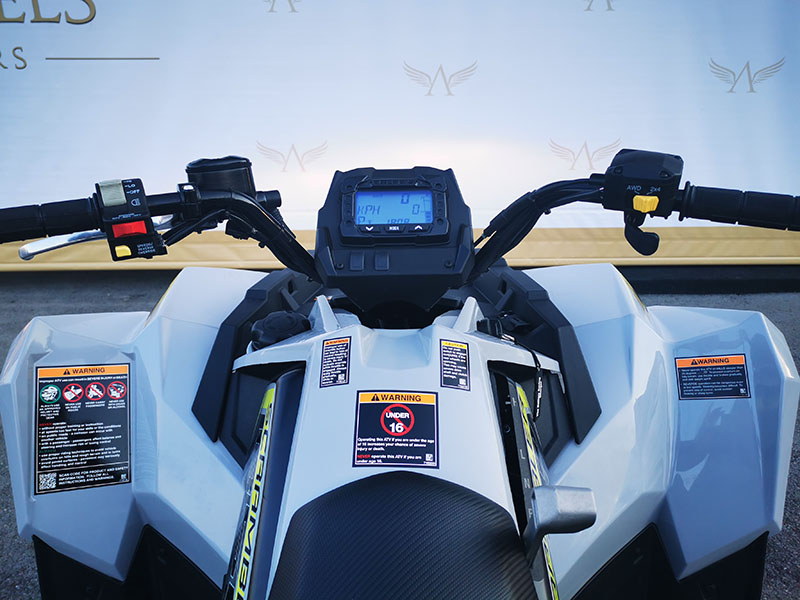

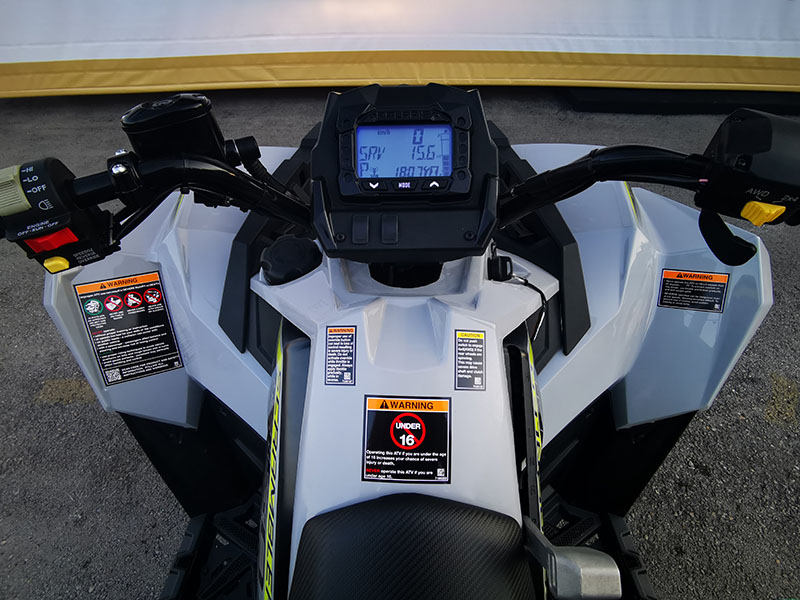

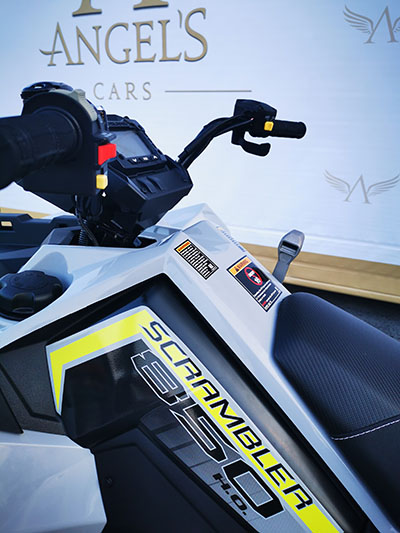

Instrumentation
All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Clock, DC Outlet
Lighting
50w High/Low Beam Headlights

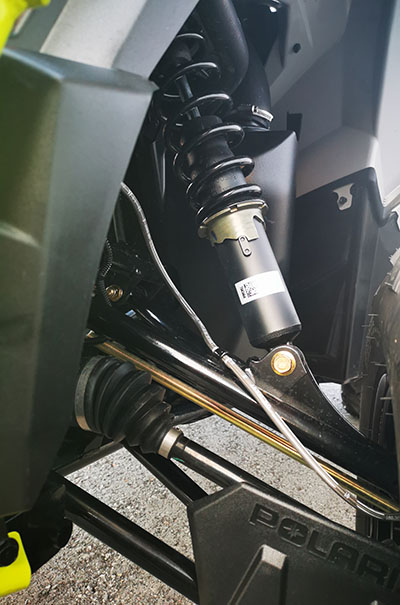

Rear Suspension
Dual A-Arm, Rolled IRS, 10.25 in (26 cm) Travel
Tires / Wheels
Electronic Power Steering
Not Equipped
Front Tires
26 x 8 CST
Rear Tires
26 x 10 CST

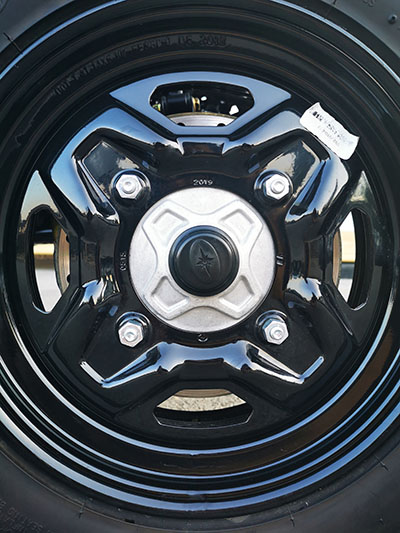

Wheels
14 in Steel
